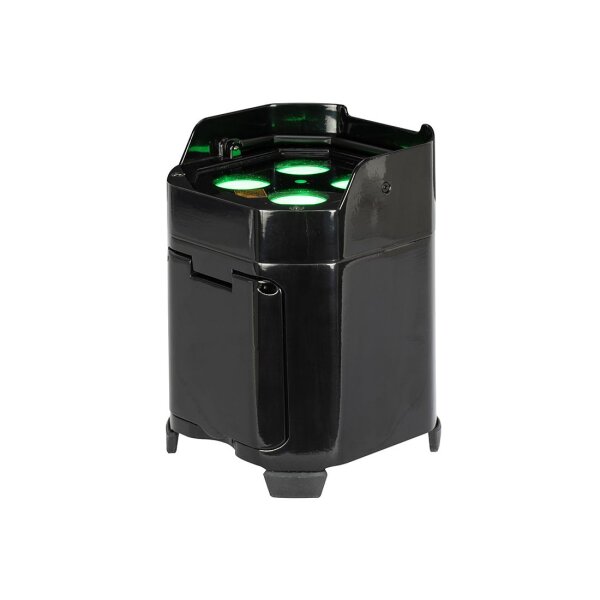

The ADJ Lighting Element H IP is a high-performance, battery-powered, wireless DMX-controlled uplighting fixture with advanced features suitable for various events such as weddings, concerts, theaters, and more. Housed in a shiny black rugged metal casing, with four 20-Watt RGBAW+UV LEDs, it creates vibrant and dynamic lighting effects that can be controlled remotely through WiFLY EXR Wireless DMX. Its built-in WiFLY EXR Wireless DMX communication protocol ensures a stable and secure connection, allowing you to control the lighting fixtures from up to 700m away.
The fixture's variable RGBAW+UV color mixing provides an infinite color palette, making it perfect wall washing. With a beam angle of 17.6 degrees and a field angle of 28.7 degrees, it can cover a wide area, and the built-in kickstand allows you to angle it when sitting on the floor. The fixture's IP54 rating makes it dust and water-resistant, making it suitable for both indoor and temporary outdoor use.
With its battery life of up to 12 hours in energy saving mode, or 6 hours in performance mode, you can run the fixture all night without worrying about looking for places to plug it in. The battery charge indicator on each fixture lets you know when it needs to be charged, and the energy-saving mode helps conserve battery life. The charging base and power supply included in the package make it easy to recharge the battery.
The Element H IP fixture is easy to operate with the 4-touch button OLED display and remote control. With seven DMX channel modes, 63 built-in color macros, and five operational modes, you have endless possibilities to create impressive lighting displays. The flicker-free operation, electronic dimming, and LED pulse and strobe effects (0.2Hz-11Hz) ensure smooth transitions and a professional look.
In summary, the ADJ Lighting Element H IP is a reliable and high-performance uplighting fixture that offers impressive features for various events. It's easy to operate, wireless, and battery-powered, making it a very convenient “true wireless” option for event professionals. Six Element H IP fixtures fit inside the Element H6 FC charging flight case.
Specifications
Optisch:
- 4 x 20-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber White & UV)
- Life expectancy: rated at 50,000 hrs.
- LUX: 1117 @ 2M; 298 @ 4M
- Beam angle: 17.6°
- Field angle: 28.7°
Connection:
- DMX: Wireless DMX
- Contact Charging system. *Charging base and power supply included
Control:
- Control protocol: WiFly EXR Wireless DMX
- 7 DMX Channel modes: 6, 8, 9, 12, 14, 15 or 17 channels
- Remote control: Wireless DMX, UC-IR24 (Included)
- 5 Operational modes: RGBAW+UV Dimmer Mode;Auto Run Mode (13 programs, & 1 color/fade combo mode); Static Color mode; and Wireless DMX Control
Features:
- IP54 Rated: partial protection from dust and water splashes
- Built-in kickstand to angle fixture when sitting on the floor
- 4-touch button OLED display inside cover panel
- Built-in WiFly EXR wireless DMX with signal LED indicator
- 63 built-in Color Macros
- Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
- LED pulse and strobe effect (0.2Hz-11Hz)
- Flicker Free Operation
- Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
- Run all night - No duty cycle
- Battery charge indicator on each fixture
- Energy Save Mode
Battery:
- Battery Type: fixed polymer lithium battery
- Battery Energy: 59.2WH (Watt Hours)
- Battery Weight: 0.24 kg
- Battery Voltage: 14.8V
- Battery Capacity: 4000mAh (Typical Capacity)
- Total Lithium Ion Cells: 4 pieces
- Battery Wrap Material: PVC sleeving + highland barley paper
- Battery Charge Time: 6 Hours
- Battery Life: 6 Hours in Normal mode and 12 hours in Energy save mode(single color)
Electrical:
- Power Draw Total (All LED's @ Full On): 20W
- Voltage operation: DC17V
Dimensions / Weight:
- Dimensions (LxWxH): 140 x 140 x 190.5mm
- Weight: 2.4kg
Certifications:
Package Includes:
- Single Black Element H IP fixture
- 1x 17.3V 1A Power Adapter
- 1x Charging base
- 1x UCIR24 wireless remote
