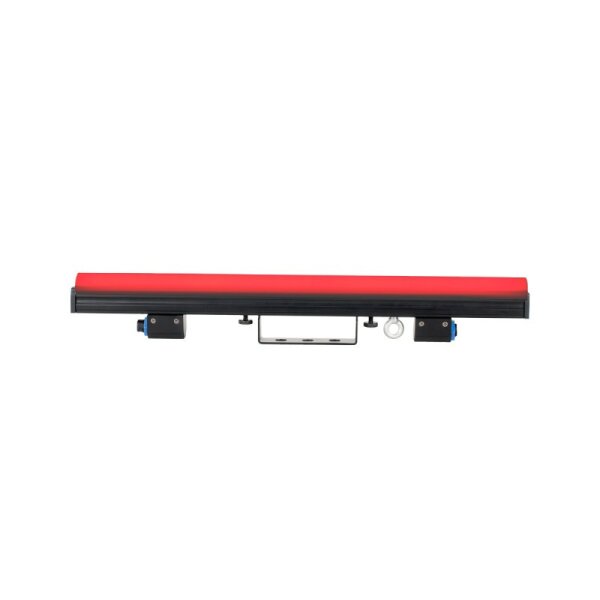

The PIXIE STRIP 30 is an indoor LED pixel bar featuring (30) tri-color RGB SMD LEDs with a 16.5mm pixel pitch, a refresh rate of 44000Hz for flicker free operation for broadcast TV and FILM applications, and measures 0.5 meter (1.6 feet) in length. Each pixel bar is housed in a lightweight aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.Easy and versatile control options are handled by the Pixie Driver 2000™ (sold separately) which provides simple on-board programs, manual dimming and strobe control, and full pixel mapping control of 2,040 max pixels via Kling-Net and 340 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary 4pin combo power/data cables (sold separately) which are available in lengths from 0,3 to 15 meters.
SOURCE
- SMD RGB 3-in-1 LED's
- Color Resolution: 8 bits per color (24 bit per pixel)
- Viewing Angle: 120 x 120 degrees
- Pixels Per Meter: 60 pixels
- Pixel Pitch (pixel center-to-center) 16.5mm
- PWM (Pulse Width Modulation): 44kHz
CONNECTIONS
- Locking 4pin combined Power/Data In/Out
SIZE / WEIGHT
- Length: 500mm
- Width: 32mm
- Height: 67mm
- Weight: 0.7kg
ELECTRICAL
- Max Power Consumption: 6W
INCLUDED
- 2 frost lenses: 1 round, 1 square
- 1x 0,3m/1ft combo power/data cable
Specifications and documentation subject to change without notice.
