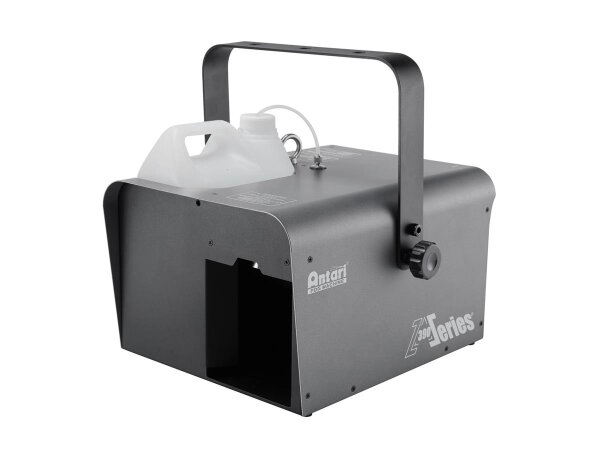

Compact fazer with adjustable output volume & DMX
- Compact fazer with high output
- Large 4-liter tank
- Produces fine, translucent haze without nebulizing the room at the same time
- Ideal for accentuating light and laser beams
- Combines the reliability of a fog machine with the extremely silent operation of a haze machine
- Control via integrated DMX interface or control module with LCD screen
- Adjustable timer with interval, duration and output volume
- Continuous output with adjustable fan speed and output volume via additional rotary controls
- Self-cleaning function extends lifespan
- Operates on standard waterbased fluid
- Integrated DMX interface (functions: output volume and fan speed, synchronous control possible)
- Intelligent DMX functions: when a DMX signal is received, the Z-380 turns on and starts heating up automatically, when the DMX signal is off, it starts the self-cleaning process and then goes into standby mode
- Z-3 cable remote control and WTR-20 wireless control available as accessories
- Output distance: ca. 4 m
- Control: DMX; Timer; Wireless remote control (optional); Wired remote control (optional)
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
1500 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Warm-up time: |
ca. 1,5 min |
| Output distance: |
ca. 4 m |
| Tank capacity: |
4 l Smoke fluid |
| Fluid consumption: |
ca. 8 ml/min |
| DMX channels: |
2 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
|
1 x 5-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
|
1 x 5-pin XLR (F) mounting version |
| Control: |
DMX |
|
Timer |
|
Wireless remote control (optional) |
|
Wired remote control (optional) |
| Housing color: |
Grey |
| Width: |
27,7 cm |
| Height: |
26,74 cm |
| Depth: |
36,8 cm |
| Weight: |
9,50 kg |
| Shipping weight: |
10,70 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
37,00 × 38,00 × 41,00 cm |
