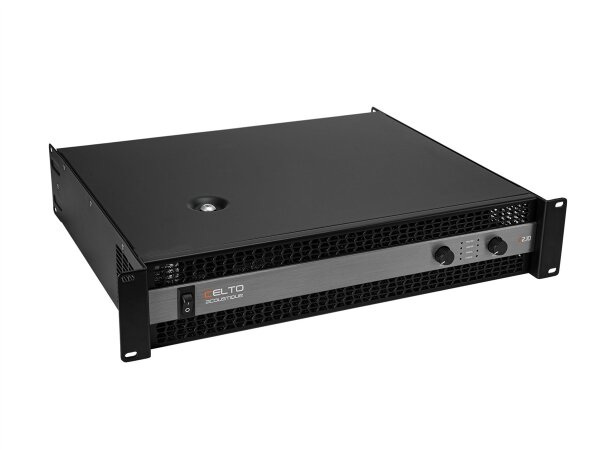

Class H touring amplifier with SMPS, 2 x 1100 W RMS (4 ohms), 2 x 750 W RMS (8 ohms)
- (19") 48.3 cm rack installation 2 U
- Highly efficient Air flow from front to rear
- The device is cooled by temperature-controlled fan
Package contents
- 1 x amplifier, 1 x power cord, 4 x foot
| Power supply: |
230 V AC, 50 Hz |
| Protection class: |
Protection class I |
| Output power: |
2 x 1100 W RMS (4 ohms); 2 x 750 W RMS (8 ohms); 1 x 2200 W RMS bridged (8 ohms) |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Device fuse: |
15 A Fuse resettable |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>108 dB |
| THD: |
<0,1 % at 1 kHz |
| Cooling: |
3 x temperature-controlled fan , Air flow from front to rear |
| Impedance: |
Input: 20 kOhm |
| Gain: |
40 dB |
| Circuitry: |
Class H |
| Slew rate: |
20 V/µs |
| Damping factor: |
>500 |
| Crosstalk: |
>65 dB |
| Control elements: |
Power switch, level control per channel, mode switch (stereo/parallel/bridged), groundlift selector |
| Controls: |
Softstart; short-circuit; Overvoltage; overload; current limiting; DC voltage; overheat |
| Status LED: |
Power, signal, limit, protect |
| Connections: |
Input: line via 2 x 3-pin XLR (F) mounting version
Output: line via 2 x 3-pin XLR (M) mounting version
Output: speaker via 2 x 4-pol SpeakON mounting version (F)
Output: 4 x screw plug-in terminal |
| Input sensitivity: |
0,775 V |
| Color: |
Black, matte, painted |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 38,8 cm
Height: 8,8 cm |
| Weight: |
15,90 kg |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
