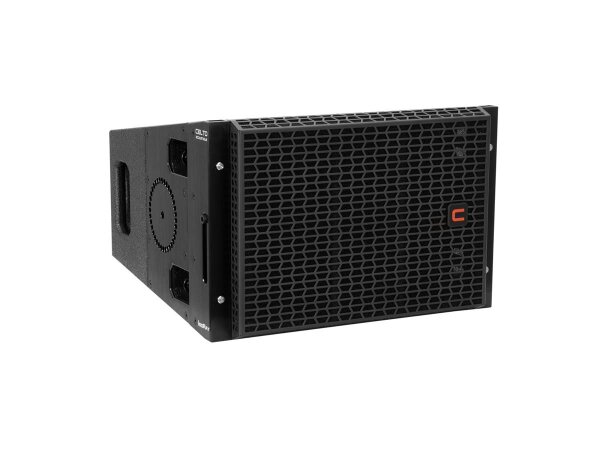

IsoRay10 coaxial passive line source speaker is suitable for near to far field main PA reinforcement in line arraytopolgy with subwoofer for mobile and permanent installations.Suitable in situations like:-FoH-Live Shows-Multi-functional Rooms-Auditoriums and theaters-Sports Center-House of Worship
Game changer, all-in-one full-range coaxial line source
- 10'' ultra compact line source
- Real 450W RMS power capacity (8 hours pink noise)
- Tiny A3 paper size format
- Unmatched size/SPL ratio
- 16 ohm (passive) for high power density
- Up to 24 speakers per array with 12 times safety
- With Mounting bracket
- Wheelboard optional
- Rubberized Polyurea coating
Package contents
| Power: |
Program: 900W
Rated: 450W RMS |
| Frequency range: |
95 - 22000 Hz |
| Sensitivity: |
98 dB (1W/1m) |
| Max. SPL: |
136 dB |
| Dispersion angle: |
100° x 12° (array dependent) |
| Impedance: |
16 ohms |
| Attachment system: |
Mounting bracket |
| Flying points: |
With integrate rigging system |
| Connections: |
Input: 2 x 4-pol SpeakON mounting version (F) |
| Crossover frequency: |
1100 Hz |
| Speaker: |
1 x midrange speaker 10" with neodymium magnet
Basket material: aluminum
Voice coil midrange speaker 3"
Diaphragmmaterial: PEEK (H.T. polymer)
1 x Annular compression driver 1"
Voice coil annular 1,75" |
| Type of speaker: |
Coaxial speaker |
| Transport aid: |
Wheelboard optional |
| Material: |
Birch multiplex |
| Color: |
Black, rubberized Polyurea coating |
| Dimensions: |
Width: 42 cm
Depth: 39 cm
Height: 28 cm |
| Weight: |
16,75 kg |
