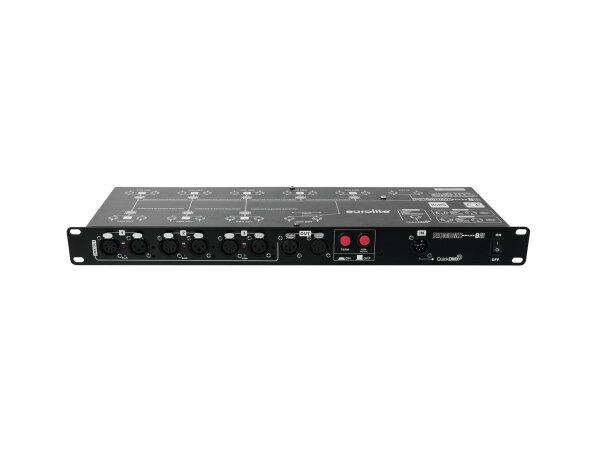

8-fold DMX splitter with RDM support
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output
- Additional QuickDMX input for wireless reception of DMX signals
- Supports RDM for bidirectional communication over the DMX line
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Input and outputs XLR 3-pin and 5-pin each
- Input and outputs galvanically isolated
- Each DMX output with independent driver and status indicators
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
- Rack mounting
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
5 W |
| DMX512/RDM connection: |
3-pin and 5-pin XLR |
| QuickDMX connection: |
5-pin XLR |
| Dimensions (LxWxH): |
483 x 145 x 45 mm |
| Weight: |
2.5 kg |
| Shipping weight: |
2.75 kg |
| Shipping weight: |
2,90 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
11,00 × 53,00 × 22,00 cm |
