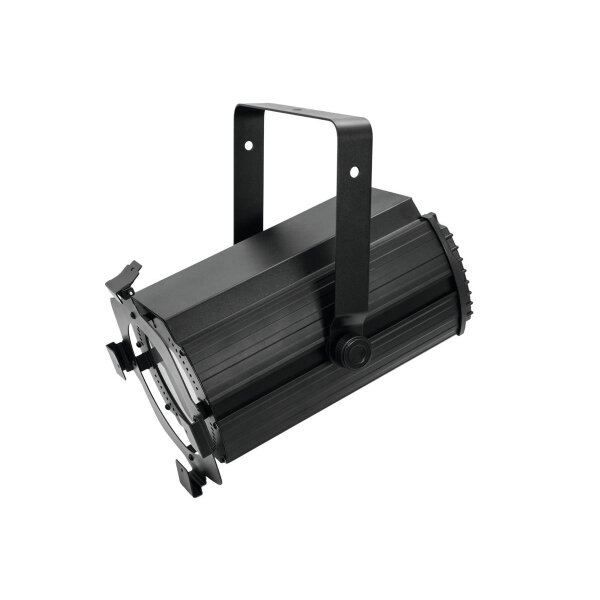

Plano-Convex Lens Spot with a 4-color LED with 120 W
- DMX-controlled operation or stand-alone operation with Master/Slave function
- DMX512 control possible via any commercial DMX controller
- 4, 6 or 7 DMX channels selectable
- Equipped with one 120 W COB LED in the colors red, green, blue and white
- Flicker-free projection
- With plano-convex lens
- Supports RDM (Remote Device Management)
- Manual, stepless zoom
- Dimmer speed (step response) adjustable
- Addressing and setting via Control Board with LCD and four operating buttons
- Functions: RGBW color mixture, automatic color change, internal programs, dimmer, strobe effects, sound-control via built-in microphone
- Speed of color changes and strobe effects programmable
- Mounting bracket for installation on a stand or a crossbeam
- Locking possibility at the bracket
- With color filter frame
- Optional barndoors available
- Small and robust spot with metal housing
- Fan-cooled
- Power connection via Neutrik PowerCon jack and included power cable
- Switch-mode power supply for operation between 100 and 240 volts
- Feed-through output allows to power another device
- After every 8 devices, the fixtures must have a renewed connection with the power mains
| Power supply: |
100-240 V AC, 50/60 Hz ~ |
| Power consumption: |
135 W |
| DMX control channels: |
4/6/7 |
| DMX512 connection: |
5-pin and 3-pin XLR |
| Type of LEDs: |
120 W COB RGBW |
| Number of LEDs: |
1 |
| Beam angle: |
3-32° |
| Dimensions (LxWxH): |
360 x 256 x 370 mm |
| Weight: |
6.3 kg |
| Shipping weight: |
6.60 kg |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| Shipping weight: |
6,60 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
31,50 × 49,50 × 31,50 cm |
