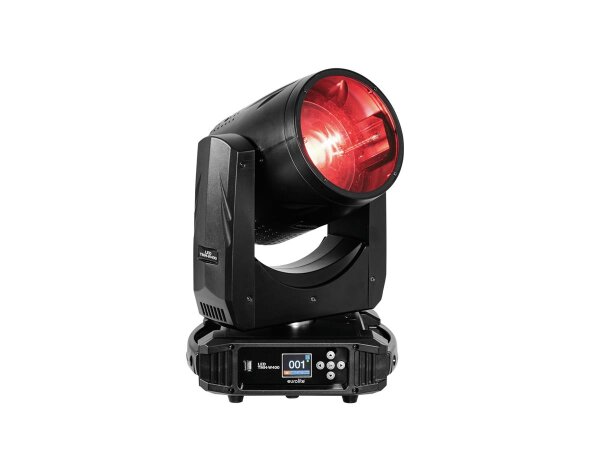

Bright washlight with 400 W COB LED and motorized zoom
- One high-power 400 W RGB/WW LED (4in1)
- Motorized zoom with 9-48° beam angle
- Stepless RGBW color mixture
- Auto, music, master/slave and DMX mode
- Built-in auto and music show programs
- Strobe effect 1-25 Hz
- Random strobe effect
- Electronic dimmer (0-100%)
- Automatic position correction
- Positioning within 540° PAN and 230° TILT
- Exact positioning via 16-bit PAN/TILT movement resolution
- Supports QuickDMX - the wireless DMX system from Eurolite
- Control panel with color LC display for easy configuration
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Mains input and output for power linking up to 4 units
- LED: 1 x COB (chip-on-board) 400 W 4in1 QCL RGB/WW (homogenous color mix)
- Can be operated in 13 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free projection
- Very high color rendering index (CRI)
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
360 W |
| IP classification: |
IP20 |
| Protection class: |
Class I |
| Power connection: |
Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 5 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
1 x COB (chip-on-board) 400 W 4in1 QCL RGB/WW (homogenous color mix) |
| Max. TILT movement: |
Exact positioning (16 bit resolution) 230° Auto position correction (feedback) |
| Max. PAN movement: |
Exact positioning (16 bit resolution) 540° Auto position correction (feedback) |
| Flash rate: |
1 - 25 Hz |
| Equipment: |
Zoom motor-driven |
| DMX channels: |
13 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan |
| Control: |
Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: |
9 - 48° |
| Beam angle (1/2 peak): |
9 - 25° |
| Beam angle (1/10 peak): |
16 - 48° |
| Color rendering index (CRI) more than: |
90 Ra |
| Illuminance in Lux (lx): |
Narrow red (R) 1m: 14250 lx, 3m: 2003 lx, 6m: 470 lx
Narrow green (G) 1m: 36558 lx, 3m: 4533 lx, 6m: 1085 lx
Narrow blue (B) 1m: 4869 lx, 3m: 959 lx, 6m: 235 lx
Narrow warm white (WW) 1m: 33844 lx, 3m: 3508 lx, 6m: 837 lx
Narrow all 1m: 75609 lx, 3m: 9660 lx, 6m: 2293 lx
Wide red (R) 1m: 2821 lx, 3m: 359 lx, 6m: 97 lx
Wide green (G) 1m: 6107 lx, 3m: 809 lx, 6m: 227 lx
Wide blue (B) 1m: 1410 lx, 3m: 188 lx, 6m: 53 lx
Wide warm white (WW) 1m: 5425 lx, 3m: 706 lx, 6m: 195 lx
Wide all 1m: 13817 lx, 3m: 1798 lx, 6m: 495 lx |
| Housing color: |
Black |
| Display type: |
Multicolor LCD display |
| Dimensions: |
Width: 30,0 cm
Depth: 23,0 cm
Height: 45,0 cm |
| Weight: |
10 kg |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
11,40 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
37,00 × 48,00 × 33,00 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
