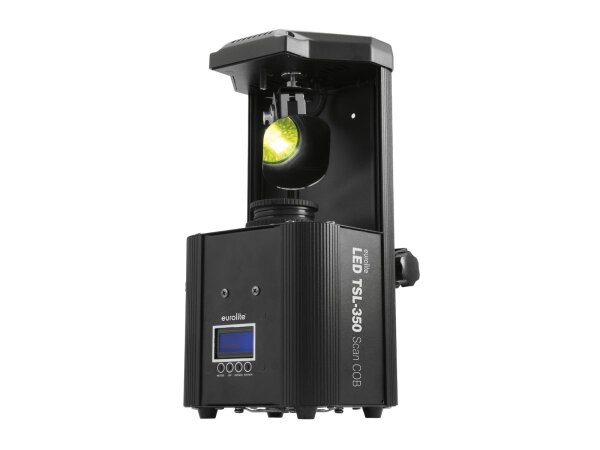

Handy scanner with 60 W COB LED, gobo and color wheel
- Compact design
- Electronic dimmer
- 1 powerful LED 60 W COB (chip-on-board) cold white (CW)
- Positioning within PAN and TILT
- Color wheel with 7 dichroic filters plus open
Rainbow effect with adjustable speed
- Gobo wheel with rotating gobos, 7 gobos and open
gobos changeable
- Slot-in gobo system for easy gobo replacement
- Shake effect
- Integrated Showprograms
- Can be operated in 10 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 11°
- LCD display
- Available in various colors
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x mounting bracket, 3 x gobos
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
70 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Fuse: |
5 x 20 mm, T 1,5 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
1 x 60 W COB (chip-on-board) cold white (CW) |
| Equipment: |
Color wheel; gobo wheel with rotating gobos; Focus manual |
| Color generation: |
Color wheel with 7 dichroic filters plus open |
| Gobos: |
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 14mm
Image diameter 10mm
Gobos changeable
Slot-in gobo system for easy gobo replacement
Shake effect |
| DMX channels: |
10 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan |
| Control: |
Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: |
11° |
| Beam angle (1/2 peak): |
11° |
| Illuminance in Lux (lx): |
Cold white (CW) 1m: 12034 lx, 3m: 1489 lx, 6m: 388 lx |
| Housing color: |
Black |
| Display type: |
LCD display |
| Dimensions: |
Width: 16,0 cm
Depth: 15,0 cm
Height: 33,0 cm |
| Weight: |
3,22 kg |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
3,60 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
21,00 × 39,50 × 22,20 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
info@steinigke.de
