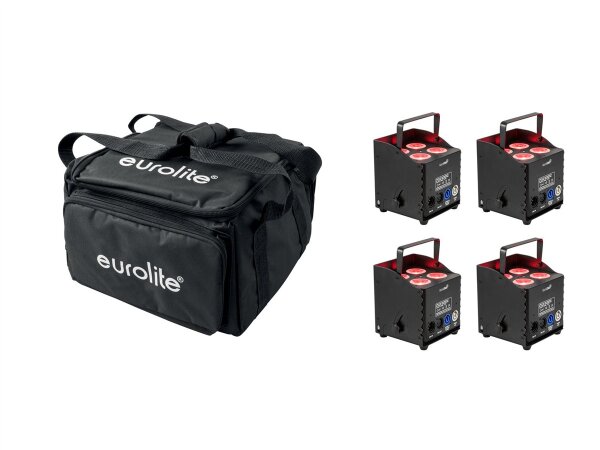

Eurolite AKKU UP-4 QCL Spot QuickDMX MK2
Bright battery powered LED uplight with 10 W 4in1 LEDs and QuickDMX
- Integrated QuickDMX transceiver for wireless DMX control
- Cordless, flexible and versatile
- 4 powerful LEDs 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
- Dimmer electronic; Dimmer speed (step response) adjustable; color fade adjustable speed; color change adjustable speed; white balance adjustable; color blend adjustable; frost filter; color selection manual; program selection manual; pulse-width modulation; Energy-saving mode; Emergency lighting function in case of power failure
- Multi beam effect; spot effect; wash effect; strobe effect
- 36 integrated show programs
- Direct color selection for 15 preset colors
- The device is cooled by passive convection cooling
- Control via IR remote control; QuickDMX; DMX; stand-alone; sound to light via microphone; wireless Master/slave function; RDM
- Up to 6 transmitters can be operated in parallel without interference
- DMX fail mode (blackout; hold; static; full on)
- With a beam angle of 7°
- With bracket for floor use
- Mains input and output for power linking up to 8 units
- For application areas such as: Wedding/gala/events; mobile use; mobile djs / entertainer; rental
- Silent operation
- Application possibility: Standing; suspended
- Battery operation up to 9h depending on program used
- Integrated automatic charging of the battery and status indicator
- With a KENSINGTON LOCK theft protection
- Flicker-free
- QuickDMX: operating range up to 600m in the open air
- Monochrome OLED display
- Display of the remaining battery life for the current setting
- Charge status indicator
- 3 buttons on the remote control for saving your own settings
Package contents
- 1 x spotlight, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x remote control, 1 x battery, 1 x frost filter, 1 x knurled screw
Eurolite SB-4 Soft Bag L
Black soft bag for up to 4 devices, 320 x 320 x 200 mm
- Practical transport bag offers enough space for several lighting effects and accessories
- With dividers
- With 2 Outside pockets
- With 4 Device compartments
- High-quality workmanship with nylon , black, water repellent
- Interior with foam padding
cover with foam padding
- 2 carrying straps
Package contents
| Weight: |
12,93 kg |
| Eurolite AKKU UP-4 QCL Spot QuickDMX MK2 |
| Power supply: |
100-240 V AC, 50/60 Hz |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable construction: |
3 x 1,0 mm² H05VV-F |
| Power output: |
P-Con (gray), mounting version |
| Battery pack type: |
1 x lithium ion 14,8 V, 6600 mAh, 97,68 Wh |
| Battery pack: |
Battery operation up to 9h depending on program used
Recharging time 3h |
| Lamp type: |
LED lamp |
| LED type: |
4 x 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: |
27 Hz |
| DMX channels: |
3; 4; 6; 8; 11 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
IR remote control; QuickDMX; DMX; stand-alone; sound to light via microphone; wireless Master/slave function; RDM |
| Projection: |
Flicker-free |
| PWM frequency: |
3000 Hz |
| Range: |
QuickDMX: range up to 600m in the open air |
| Carrier frequency: |
2,4 GHz |
| Parallel mode: |
Max. 6 transmitter |
| Modulation: |
GFSK |
| DMX fail mode: |
Blackout; hold; static; full on |
| Beam angle: |
7° |
| Beam angle (1/2 peak): |
7°
Frost filter 20° |
| Beam angle (1/10 peak): |
18°
Frost filter 42° |
| Distance to wall: |
500 mm |
| Attachment system: |
Bracket for floor use |
| Display type: |
Monochrome OLED display |
| Display: |
Battery runtime calculation , charge status indicator |
| Material: |
Metal, painted |
| Theft protection: |
KENSINGTON LOCK |
| Dimensions: |
Length: 15,4 cm
Width: 13,3 cm
Height: 15,8 cm |
| Weight: |
2,83 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Eurolite SB-4 Soft Bag L |
| Maximum load: |
25 kg |
| Carrying strap: |
2 pc/pcs |
| Material: |
Nylon |
| Color: |
Black, water repellent |
| Compartment dimensions: |
15 cm x 15 cm x 20 cm |
| Inside dimensions: |
31 cm x 34 cm x 20 cm |
| Dimensions: |
Width: 32 cm
Depth: 41 cm
Height: 20 cm |
| Weight: |
520 g |
| Shipping weight: |
14,00 kg
|
