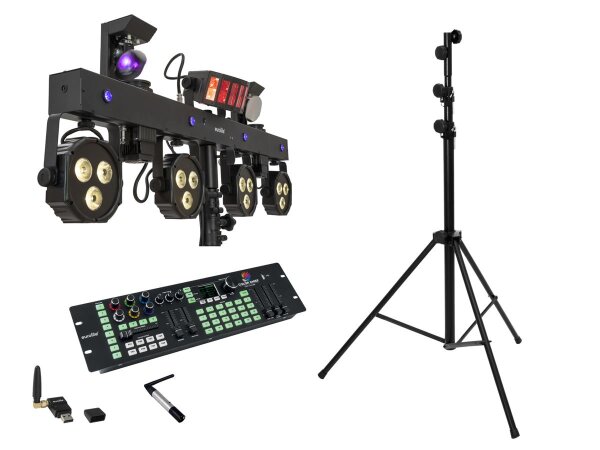

42109897 Eurolite LED KLS Scan Next FX Compact Light Set
Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag
- DMX light effect bar with 1 rotating LED derby, 4 LED spots, 2 scanners and UV LEDs
- Ultra-light ideally suited for mobile use
- Crossbar with integrated DMX control unit and TV spigot for stand installation
- Swivel mounting brackets for truss mounting
- Comes pre-assembled with practical transport bag
- Convenient control via included IR remote control or optional wireless foot switch
- Sound-control via built-in microphone with sensitivity control
- Several diverse DMX modes for various consoles and requirements
- LED derby and LED spots individually tiltable and controllable
- Spots with 15° beam angle
- Mirror movement can be inverted separately for both scanners (e.g. for common, counter-rotating control)
- Brand-new software design with smart programs
- 20 built-in auto and music show programs that include all 4 effect units
- Addressing and setting via control panel with 4-digit OLED display
- Supports QuickDMX - the wireless DMX system by Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- When fog is used, this effect becomes especially attractive
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- Can be operated in 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 CH mode
- The device is cooled by cooling fan
- Controlling by DMX; QuickDMX via USB (optional); IR remote control (provided); Sound to light via Microphone; Stand-alone; Wireless footswitch (optional); Master/slave function
- For application areas such as: Wedding/gala; Lender; Small lender
spotlight
- LED: Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix)
light effect
- LED: Multi beam effect each 1 x 3 W RGB
moving light
- LED: Scanner each 1 x 15 W CW
bar
- LED: 4 x high-power 1 W UV
70064704 Eurolite QuickDMX USB Wireless Transmitter/Receiver
Wireless miniature DMX transceiver 2.4 GHz, phantom powered
- User-friendly USB plug with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Operating range up to 400 m (with line-of-sight)
- Simultaneous operation of up to 6 transmitters, thus control of 6 DMX universes (3072 DMX channels) possible
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- 2.4 GHz ISM band - license-free worldwide
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Controlling by DMX; QuickDMX built-in
70064700 Eurolite QuickDMX Wireless Transmitter
Wireless DMX transmitter 2.4 GHz
- User-friendly 3-pin XLR plug (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Powered via included PSU
- 2.4 GHz ISM band - license-free worldwide
- Can transmit up to 512 DMX channels
- Controlling by QuickDMX built-in
- Use a operating range up to 400m
70064575 Eurolite DMX LED Color Chief Controller
DMX lighting desk with innovative control concept for LED spotlights
- Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
- For 8 devices or device groups, each with up to 4 segments
- Each device can occupy up to 30 channels
- Quick and easy programming
- Eurolite KLS systems and LED spotlights already in the library
- Additional fixtures can be configured manually
- 8 color effects directly selectable
- 3 additional channels available per fixture (e.g. for rotations)
- Color wheel selection and simulation
- 24 memory spaces for scenes and chases
- Several chases can be run simultaneously
- USB port for data storage of lighting programs
- Sound control via audio signal or TAP button
- Master dimming, fade time and run time easily adjustable
- 3-pin XLR connector
- Firmware update via USB
- Desktop console
- Programmable 24 sequencens
- Can transmit up to 240 DMX channels
- Controlling by DMX; Sound to light via RCA (f) mounting version; Sound to light via Microphone
- (19") 48.3 cm rack installation 3 U
59007011 Eurolite STV-60-WOT EU Steel Stand black
Lighting stand, made in EU, max. load 30 kg, height 150-315 cm
- Stable lighting stand (without T bar)
- For mobile use
- Steel/magnesium version
- Ø 29 mm attachment fits standard TV pins
- Carry bag available as accessory
- Available in black and white
- Produkt aus europäischer Produktion
| Weight: |
21.00 kg |
| 42109897 Eurolite LED KLS Scan Next FX Compact Light Set |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
115 W |
| IP classification: |
IP20 |
| Protection class: |
Class I |
| Power connection: |
Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: |
LED lamp |
| Equipment: |
Color wheel; gobo wheel with static gobos |
| DMX channels: |
3; 7; 13; 14; 15; 18; 19; 30; 32; 39 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan |
| Control: |
DMX; QuickDMX via USB (optional); IR remote control (provided); Sound to light via Microphone; Stand-alone; Wireless footswitch (optional); Master/slave function |
| Beam angle: |
15° |
| Beam angle (1/2 peak): |
Spot 15° |
| Beam angle (1/10 peak): |
Spot 28° |
| Illuminance in Lux (lx): |
R red 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx
G green 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx
B blue 1m: 395 lx, 3m: 47 lx, 6m: 13 lx
WW 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx
All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx |
| Housing color: |
Black |
| Attachment system: |
TV spigot Ø 28mm |
| Display type: |
OLED display |
| Dimension: |
Width: 1.1 m
Depth: 15.5 cm
Height: 43 cm |
| Weight: |
12.80 kg |
| Spotlight |
| LED: |
Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix) |
| Light effect |
| LED: |
Multi beam effect each 1 x 3 W RGB |
| Moving light |
| LED: |
Scanner each 1 x 15 W CW |
| Bar |
| LED: |
4 x high-power 1 W UV |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2025 lithium manganese |
| Legal specifications |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| 70064704 Eurolite QuickDMX USB Wireless Transmitter/Receiver |
| Power supply: |
5 V DC |
| IP classification: |
IP20 |
| Power connection: |
Mains input USB A (M) connectable version |
| DMX channels: |
Input 512
Output 512 |
| DMX output: |
1 x USB, type A |
| Control: |
DMX; QuickDMX built-in |
| Carrier frequency: |
2.4 GHz |
| Modulation: |
GFSK |
| Parallel mode: |
Max. 6 transmitter |
| Color: |
Black |
| Dimension: |
Width: 8.6 cm
Depth: 4 cm
Height: 1.1 cm |
| Weight: |
10 g |
| 70064700 Eurolite QuickDMX Wireless Transmitter |
| Power supply: |
100-240 V AC, 50/60 Hz
5 V DC 1 A |
| IP classification: |
IP20 |
| Power connection: |
Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| DMX channels: |
Output 512 |
| DMX input: |
1 x 3-pin XLR (M) |
| Control: |
QuickDMX built-in |
| Carrier frequency: |
2.4 GHz |
| Modulation: |
GFSK |
| Parallel mode: |
Max. 6 transmitter |
| Range: |
400 m |
| Color: |
Silver |
| Dimension: |
Length: 21.2 cm
Diameter: Ø 1.8 cm |
| Weight: |
150 g |
| 70064575 Eurolite DMX LED Color Chief Controller |
| Power supply: |
100-240 V AC, 50/60 Hz
9 V DC 800 mA |
| Power consumption: |
10 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Programs: |
Programmable
24 Sequences |
| DMX channels: |
Output 240 |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Control: |
DMX; Sound to light via RCA (f) mounting version; Sound to light via Microphone |
| Housing color: |
Black |
| Available storage media: |
USB devices (FAT 32) |
| USB port: |
Typ A |
| Color: |
Black |
| Housing design: |
(19") 48.3 cm rack installation 3 U |
| Dimension: |
Width: 48.3 cm
Depth: 13.35 cm
Height: 8.5 cm |
| Weight: |
2.25 kg |
| 59007011 Eurolite STV-60-WOT EU Steel Stand black |
| Maximum carrying capacity: |
30 kg |
| Height: |
Maximum: 3.15 m
Minimum: 1.5 m |
| Attachment system: |
TV spigot Ø 28mm |
| Type (general stands): |
Light stand/manual |
| Material: |
Steel/magnesium |
| Color: |
Black |
| Transport dimensions: |
126 cm x 12 cm x 15 cm |
| Weight: |
5.65 kg |
| Shipping weight: |
22,85 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
135,00 × 120,00 × 80,00 cm |
