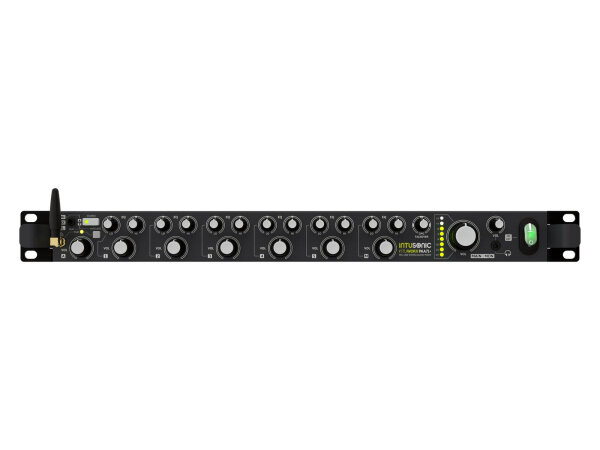

The INTUWORX PAA71 is 7-channel mic/line mixer and the perfect center of any installed sound system. It offers 5 multi-purpose inputs which can either be fed with a balanced microphone signal or an unbalanced stereo line signal. One further balanced stereo line level input is specifically useful for sources at larger distance, like a mixer on a stage, or the output of a secondary room's system. The same input can be switched to receive its input signal from the 3.5mm TRS jack on the front, or the built-in LINKOUSTIC 4.2 wireless audio link. An additional dedicated microphone input with adjustable talkover (priority) provides control over announcements. Every input -- with the exception of the balanced stereo input -- is equipped with rear-panel gain control and a front-panel 2-band equalizer. The external shutdown and emergency signal input connections allow integration with central announcement and evacuation systems where required.
Microphone line mixer, 7 channels
- (19") 48.3 cm rack installation
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x user manual, 1 x mixer, 1 x power cord, 10 x screw plug-in terminal, 1 x plug (male), 4 x foot, 1 x antenna
| Power supply: |
115/230 V AC, 50/60 Hz |
| Power consumption: |
Max. 12 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC (M) power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>82 dB line |
| THD: |
<0,05 % at 1 kHz |
| Phantom power: |
12 V DC |
| Connections: |
Input: 1 x 6.3-mm-jack (bal.) |
| Channels: |
Input chanel: 5 x stereo with Mic-line switch via RCA, channel control via Rotary dial, 2-band tone control EQ |
| Equalizer: |
1 x 2-band tone control mono |
| Housing design: |
(19") 48.3 cm rack installation |
| Dimensions: |
Width: 48,3 cm
Depth: 19 cm
Height: 4,4 cm |
| Weight: |
2,70 kg |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
