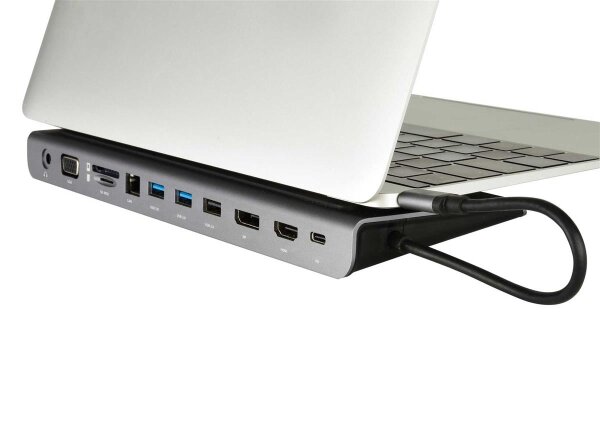

Kramer KDock-4 USB-C Hub Multiport Adapter
KDock-4 ist ein USB-C-Hub-Multiport-Adapter, der speziell zur Unterstützung mobiler Geräte entwickelt wurde und ein ideales Zubehör für MacBook, Laptops mit USB Type-C, Mobiltelefone und Tablets ist. Mit dem KDock-4 können Sie Ihr USB-C-Gerät an HDMI™, DisplayPort und VGA-Videoausgänge, 2 USB 3.0-Ports, 1 USB 2.0-Port, einen Ethernet-Port, einen SD- und micoSD-Kartenport und einen USB-C-Ladedurchgang anschließen.
Features
- 4K@30 HDMI output
- 4K@30 DisplayPort output
- VGA output
- USB 3.0 data and charging ports
- Ethernet port
- USB-C charging pass-through
- SD and MicroSD ports
Technische Daten
- Eingang: USB Type-C male connector
- Ausgang: female HDMI connector, female DisplayPort connector, 1 VGA: On a female 15-pin HD connector
- 2 USB 3.0: On female USB type-A connectors
- 1 USB 2.0: On female USB type-A connectors
- 1 Ethernet: On an RJ-45 connector
- SD: On an SD card port
- 1 Unbalanced Stereo: On a 3.5mm mini jack
- SD: On a microSD port
- 1 USB: On a female USB type-C connector for charging
- Max Resolution (HDMI/DP): 3840x2160P@30Hz (with one display connected)
- Max Resolution (HDMI/DP): 1920x1080P@60Hz (with two displays connected)
- Max Resolution (HDMI/DP): 1920x1080P@60Hz (with three displays connected)
- Max Resolution (VGA): 1920x1080P@60Hz (with one or two displays connected)
- Max Resolution (VGA): 1280x720P@60Hz (with three displays connected)
- Max Data Rate (HDMI/DP output): 10.2Gbps (3.4Gbps per graphic channel)
- Content Protection (HDMI output): HDCP 1.4
- Max Data Rate: 1000M (Gigabit)/100M/10M
- Includes: Wake-on-LAN (WoL), single Mac address, PXE boot
- USB 3.0 Data Transmission Speed: Up to 5.0Gbps
- Verbrauch: 100W
- USB Charging: BC1.2 (5V 1.5A)
- USB Limited Current when Connected to Power via female USB-C port: 1.9A
- USB Limited Current when Not Connected to Power via female USB-C port: 1A
- Operating Temperature: 0° to +70°C (32° to 158°F)
- Storage Temperature: -10° to +55°C (14° to 131°F)
- Humidity: 5% to 90%, RHL non-condensing
- Gehäuse: Aluminum with built-in 20cm/7.87" flexible USB-C cable
- Safety: CE
- Environmental: RoHs, FCC
- Maße(BxTxH): 260x90x 25mm
- Gewicht: 0,4kg
