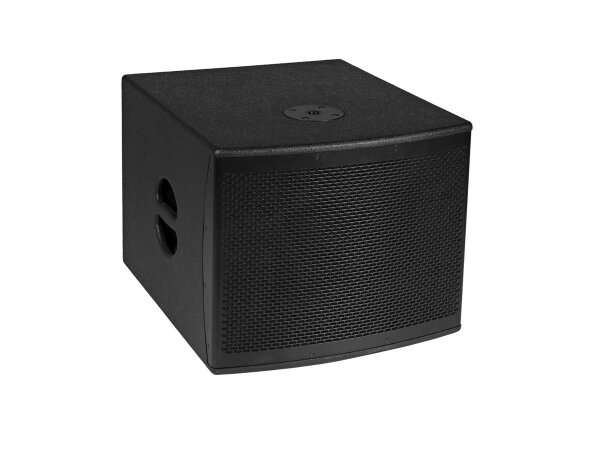

Active 12" subwoofer with DSP and Bluetooth
- 12" bassreflex subwoofer with DSP and 700 watts RMS power
- Flexibly extendable with MOLLY-6 satellites for 2.1 and 4.1 configurations
- DSP-controlled class D amplifier (500 W + 2 x 100 W)
- Integrated Bluetooth audio streaming
- 4 EQ presets with indicators
- Signal limiter and crossover
- Signal inputs via combo jacks (XLR/6.3 mm jack), RCA and 3.5 mm jack
- XLR outputs for linking further MOLLY systems or active systems
- Separate volume controls for subwoofer and satellites L/R
- Stereo/mono selection
- Phase reversal switch
- Fault, limit, signal and power indicators
- Built-in protection circuits: soft start, short-circuit, limiter, overcurrent, overheat
- M20 metal flange for mounting satellite speakers
- Multiplex enclosure with scratch-resistant lacquer surface and steel grille
- Built-in handles and low weight for ease of transport
- Delivery includes two speaker cables
- For mobile live and DJ applications and installation in bars, stores, conference rooms and home theaters
- Digital signal processor
- Controling by Bluetooth
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
1000 W |
| Output power: |
1 x 500 W RMS
2 x 100 W RMS (8 ohms)
2 x 200 W RMS (4 ohms) |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Frequency range: |
40 - 160 Hz |
| Sensitivity: |
103 dB |
| Max. SPL: |
128 dB |
| DSP: |
Digital signal processor |
| Control: |
Bluetooth |
| Attachment system: |
M20 thread |
| Circuitry: |
Class D |
| Connections: |
Input: 2 x line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: 1 x line via 3.5 mm jack (stereo) mounting version
Output: 2 x line via 3-pin XLR
Output: 2 x Top via speaker built-in socket (f) |
| Input channels: |
1 x stereo via Combination socket or RCA or Bluetooth, channel control via Rotary knob |
| Speakers: |
1 x woofer (12") approx 30 cm
Voice coil lows (3") approx. 8 cm |
| Type of speaker: |
Subwoofer |
| Type: |
Vented |
| Color: |
Black, painted |
| Width: |
47 cm |
| Height: |
40 cm |
| Depth: |
57 cm |
| Weight: |
24.30 kg |
| Shipping weight: |
23,85 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
47,00 × 62,00 × 52,00 cm |
