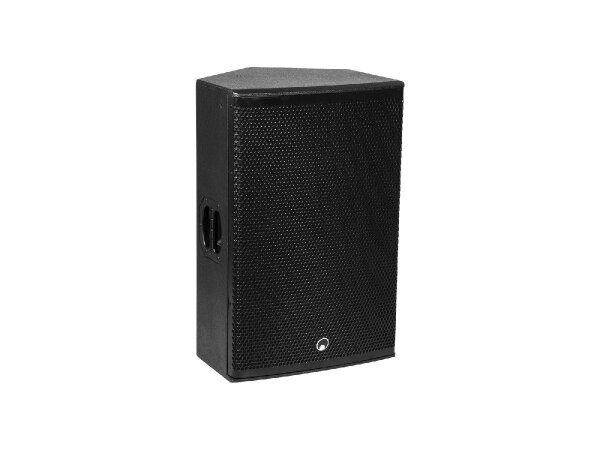

Passive speaker with 15" woofer, 1" driver and 400 W RMS
- Rugged full-range top speaker, qualified for suspension
- Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
- 2-way bass-reflex system with 38 cm woofer (8 cm voice coil)
- 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
- Parallel Speaker connections
- Optimized for combination with PAS subwoofers
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- M8 threaded inserts for suspended installation
- Protective grille and recessed aluminum handlebars
- Applications: standing, on a subwoofer or speaker stand, suspended
| Rated power: |
400 W RMS |
| Program power: |
800 W |
| Frequency range: |
50 - 20000 Hz |
| Sensitivity: |
98 dB (1W/1m) |
| Max. SPL: |
127 dB |
| Dispersion angle: |
90° x 60° |
| Crossover frequency: |
3000 Hz |
| Impedance: |
8 Ohm |
| Connections: |
Input: 2 x Speakers via Speaker built-in socket (f) |
| Speakers: |
1 x Woofers (15") approx 38 cm Ferritmagnet |
|
Voice coil lows (3") approx. 8 cm |
|
Voice coil tweeter (1") approx 2,5 cm |
| Width: |
500 cm |
| Height: |
750 cm |
| Depth: |
485 cm |
| Weight: |
24,20 kg |
| Shipping weight: |
26,20 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
77,00 × 50,00 × 49,00 cm |
